HT-1003 Haze Meter

P1070884 transparent.png
P1070884 transparent.png

HT-1003 Haze Meter

0.00
Add To Cart

Designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.

The HT-1003 Haze Meter does not need to warm-up during a test, saving time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirements.

Features

1. Conform to ASTM and ISO standard. There are 3 kinds of light sources A,C and D65 for haze measurement.


2. It can realize transmittance compensation measurement, which can provide higher accuracy test results.


3. Open measurement area, no limit on sample size. Vertical measurement is also available.



4. There are different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.



5. The instrument comes with haze and transmittance measurement software.

Specifications

 Type: Haze Meter HT-1003

Light Source: CIE-A,CIE-C,CIE-D65

Standards: ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105,JIS K 7361, JIS K 7136,GB/T 2410- 2008,JJF 1303-2011

Parameters: HAZE, Transmittance (T)

Spectral Response: CIE Luminosity function Y/V (λ)

Wavelength: 400-700nm

Wavelength Interval: 10nm

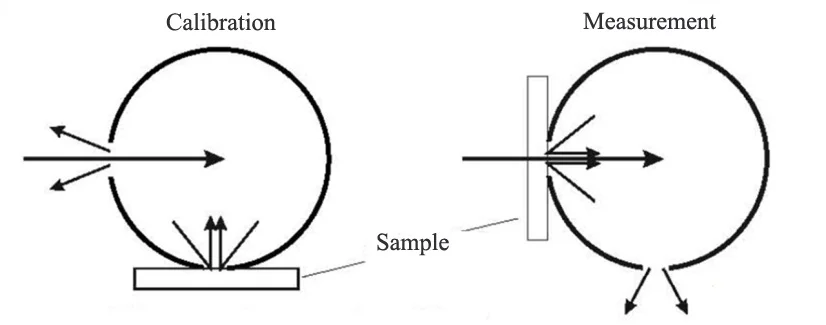

Geometry: 0/d

Illumination and Test Aperture Size: 16.5mm/21mm

Measurement Range: 0-100%

Haze Resolution: 0.01

Haze Repeatability: ≤0.1 Unit

Sample Size: Thickness ≤145mm

Data Storage: 20000 pcs of samples

Interface: USB

Power: 110-240V

Working Temperature: 0~45°C, relative humidity 80% or below( at 35°C ), no condensation

 HT-1003 Haze Meter meets the following standard, click on the link to purchase the standard ASTM D1003
